Adapter MPO-MPO, 10GB OM3, Reversable Key, Aqua, Standard Footprint

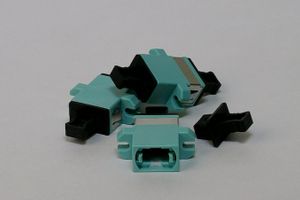

These are aqua adapters for connecting two MPO or MTP cables (up to 12 fiber). They fit in a standard MPO size panel cutout. The aqua color usually indicates multimode 50/125 OM3 fiber. Alignment key may be set to aligned or opposed.

Specifications
Connectors- MTP/MPO 12-position to MTP/MPO 12-position
Body material- Polymer
Mounting- Free standing or bulkhead mount (Standard MPO footprint: 0.59in x 0.39in, 15mm x 10mm).
Alignment sleeve material- none. uses alignment pins on one connector to mate with
alignment holes on the other connector.
Channels- 12-position
Mode- not specified
Color- Aqua
Durability- <0.2dB change after 500 matings
Operating Temperature- -4 º C to +75 º C (+25 º F to +165 º F)

PLEASE CALL FOR LENGTHS AND CONFIGURATIONS NOT SHOWN
